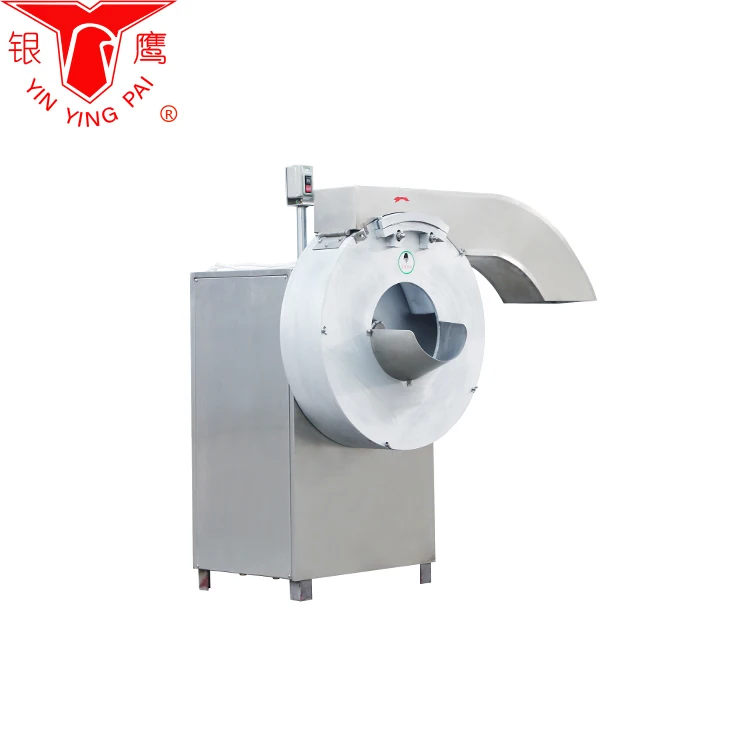

YST-100 type Potato Chips Machine is widely used making superior quality chips of vegetable, which is the exclusive equipment in vegetable processing industry for producing fresh or dehydrated vegetable. It is also perfect machinery for processing high quality potato chips in the fast food industry.
During processing, the material is transferred using guide Chute on the rotary drive plate, and slices up by small cutter distributed obliquely and arched big incline cutter. The machine is high
efficiency, low energy consumption and easy operation, and can produce vegetable chips with high section quality. All machinery parts contacted with the vegetable are made of aluminum alloy or stainless steel, which is satisfied with the requirements for hygiene standards of food processing machinery
Size after Packing
Weight after Packing
1.1Kw 110V 60Hz, 220V 60Hz or Customized

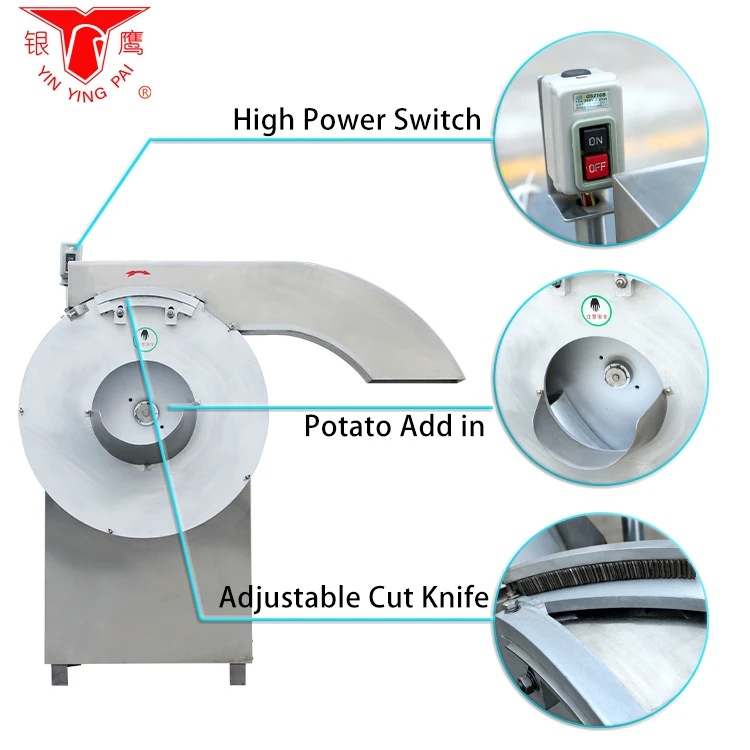

The machine contain Rack, shell, Drive Plate, cutter,Transmission,and Discharging parts etc
Potato materials put in charging bucket rotate along the shell with
the help of the guide chute distributed on the rotary drive plate, and
slice into chips by the cutters installed on the shell. At last, the chips
are transported to the discharging parts.
3 Technical Parameters
a. Production capacity: l000kg/h (Calculated by 10mm standard) b. Standards of chip: 5mm, 8mm, 10mm.(Each machine is onlyconfigured with one standard. Consumers can buy other type ofaccessories if they need.)c.Rotate speed of drive plate: 178r/min.d.Motor power: 1.1 kw-4 or 0.75kw-4.e.Rated voltage :220V or380V.f.Rated frequency: 50HZ.g.Waterproof grade:IPX1.
